Description

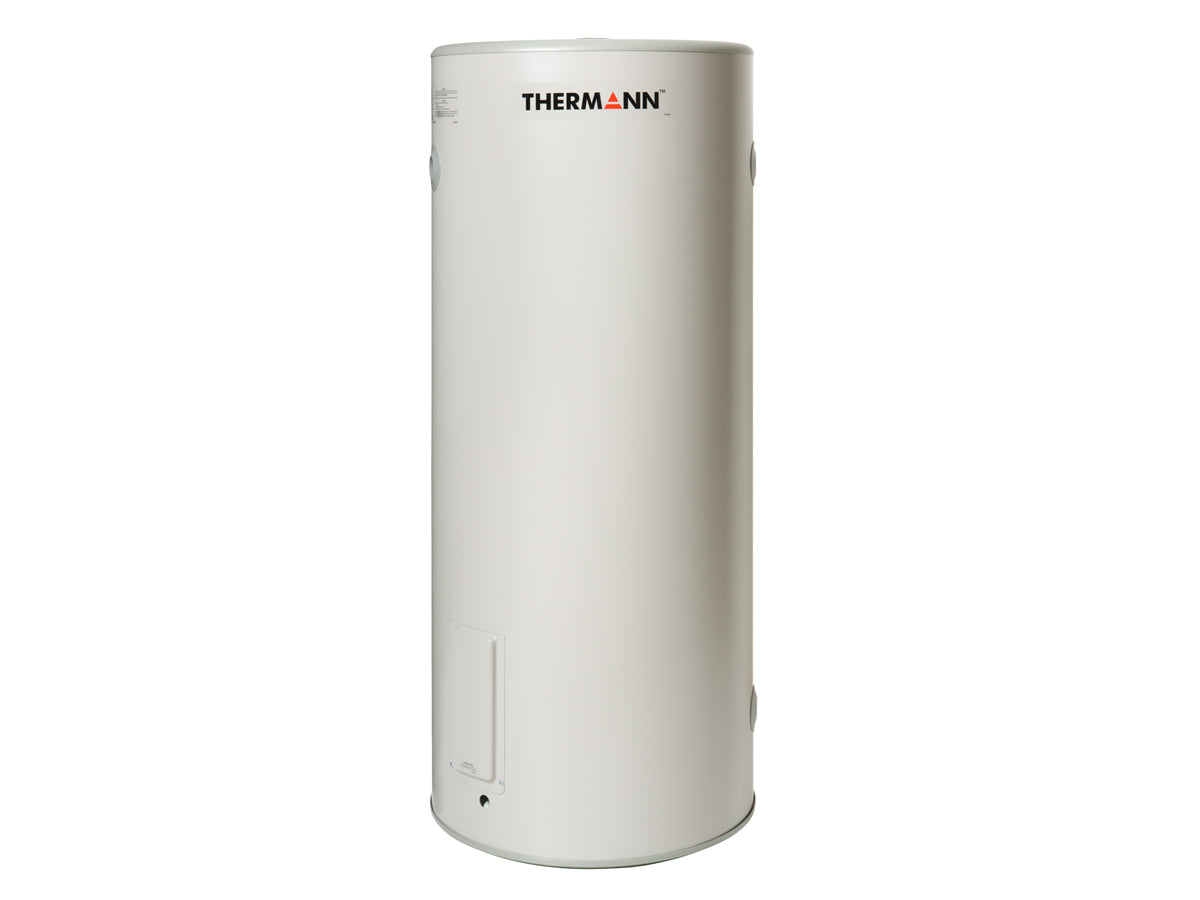

Thermann 160L 3.6kW Single Element

Electric Hot Water System

Summary

Heating water through an insulated tank by an electric element, the Thermann Electric Hot Water System is quick and easy to install and available in 6 sizes. Now with a 10 year warranty, the large electric range features a thicker anode that works alongside the Y Class enamel to extend the life of the tank.

Features

Australian made tanks

Electric footprint identical - Easy changeover

Manufactured using state of the art machinery

General Information

Number of People: 3-5

Installation: External

Number of Elements: Single Element

Product Type: Electric Storage

Website: www.thermann.com.au

Material

Tank Material: Vitreous Enamel

Technical Information

Hot Water Delivery: 160 ltr

Element Size: 3.6 kW

System Connections: Dual Handed

Cold Water Connections: 20 mm

Hot Water Connections: 20 mm

Relief Valve Power Rating: 10 kW

Relief Valve Temperature: 99 deg C

Pressure Information

Expansion Control Valve Setting: 850 kPa

Maximum Supply Pressure - with ECV: 800 kPa

Maximum Supply Pressure - without ECV: 650 kPa

Relief Valve Setting: 1000 kPa

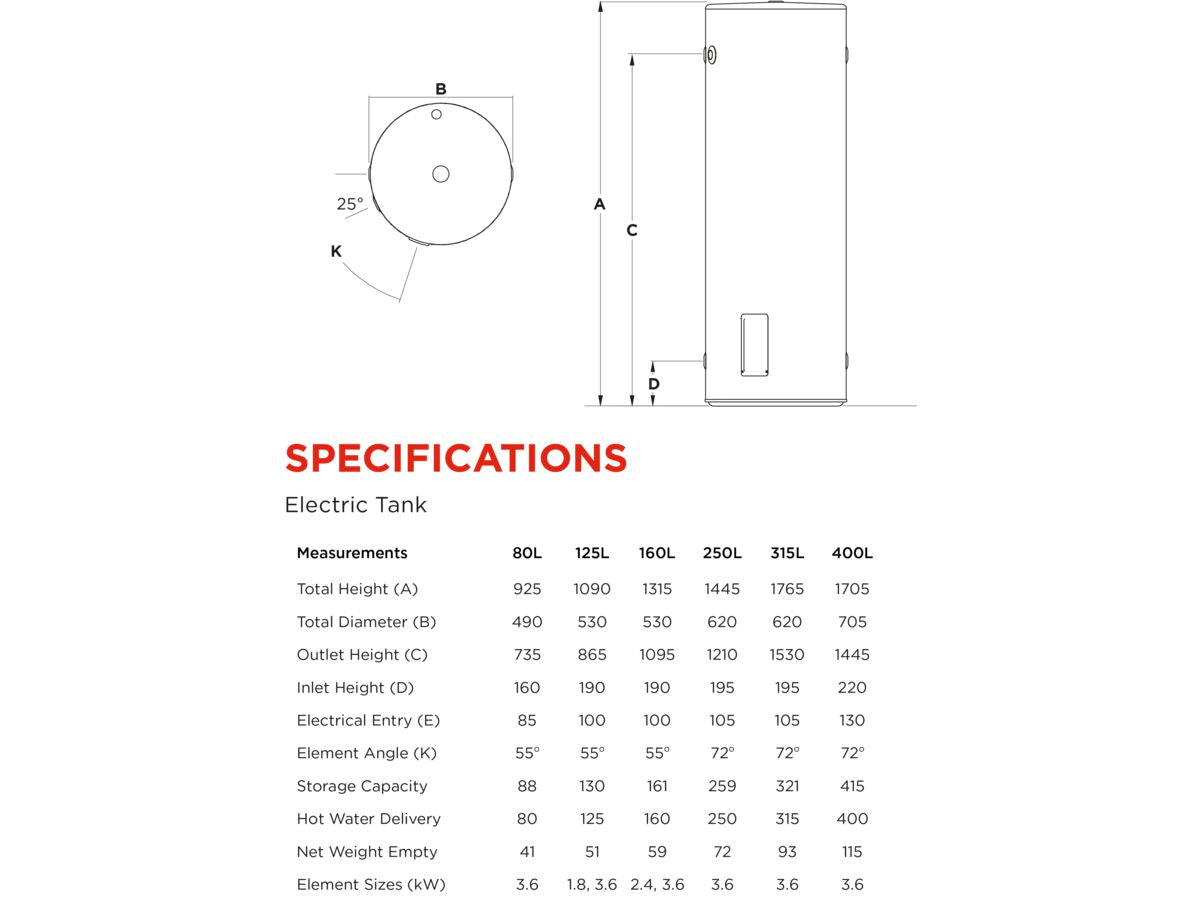

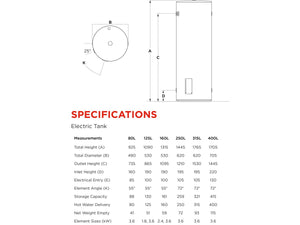

Size and Dimensions

Approximate Weight (empty): 59 kg

Diameter: 530 mm

Height: 1315 mm

Electrical Entry Height: 100 mm

Inlet Height: 190 mm

Outlet Height: 1095 mm

Warranty

Cylinder Warranty: 10 Years

Spare Parts and Labour: 12 Months
