Forma Ccbtw Bk/ln TS Scqr Seat WH (4*)

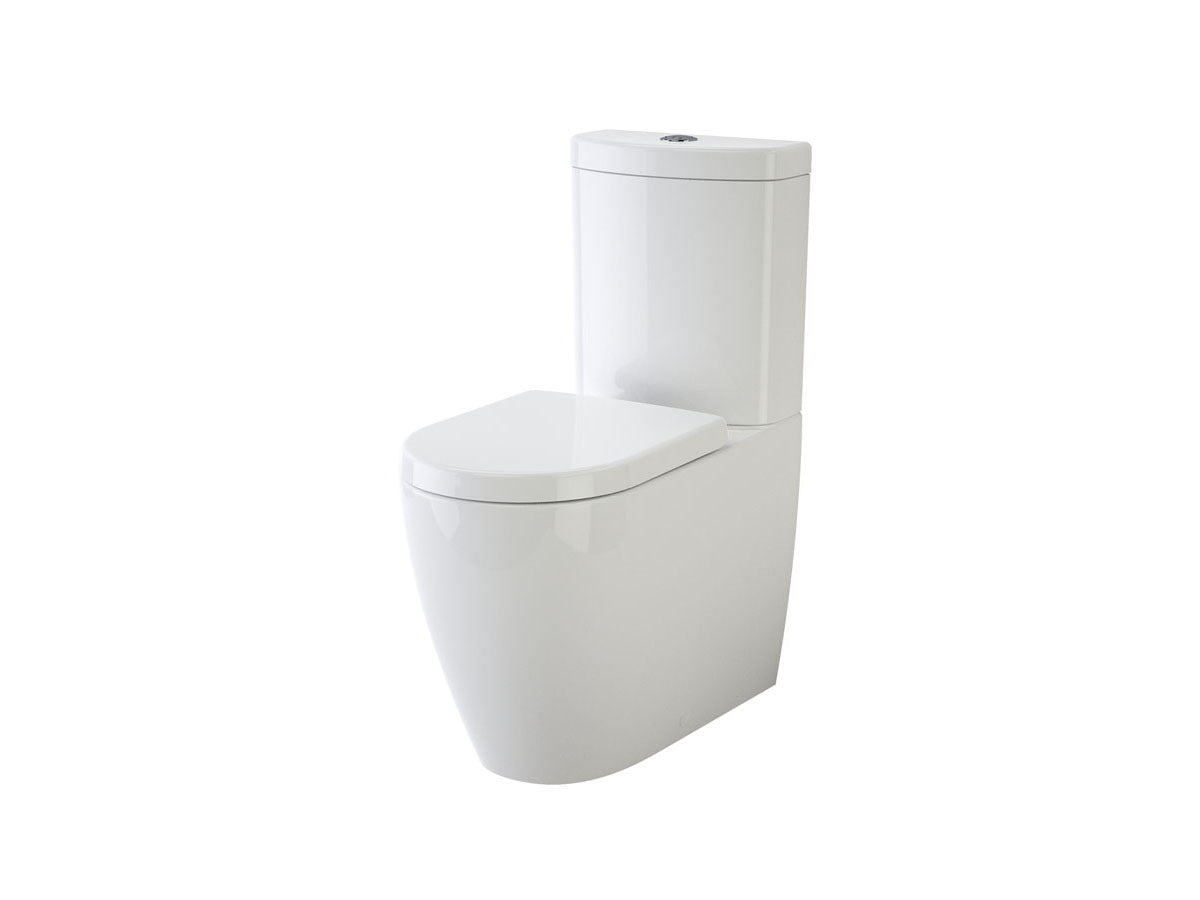

    Caroma Forma Close Coupled Back To Wall Back Inlet Over Height Rimless Toilet Suite with Soft Close Quick Release Seat White (4 Star)



    Caroma Forma is the ultimate combination of disciplined engineering and uncompromising flushing performance. The Forma Over Height Close Coupled Back to Wall Toilet Suite with soft close seat and Cleanflush technology exudes an understated elegance with gentle curves and a classic enduring design while offering a more hygienic clean. - Caroma Flow Balancer: Controls and directs flush - Over Height


    General Information

    Options: Bottom Inlet also available.

    Recommended Use: Domestic, Hotel and Commercial

    Rim Configuration: Rimless

    Toilet Seat: Arc Soft Close Quick Release Thermoset Toilet Seat


    Colour and Finish

    Colour: White

    Toilet Suite Colour: White


    Cistern Material: Vitreous China

    Pan Material: Vitreous China

    Toilet Seat Material: Thermoset


    Technical Information

    Cistern Fixing: Cistern is fixed directly to the pan with a robust concealed base fixing system without the need for wall fixing

    Pan Outlet Type: Universal S & P

    Pan Fixing: Pan is fixed to the floor with a sand cement mixture, then bedded with an acetic cured silicone sealant and fixed with corrosion resistant screws and pan guard washers

    Water Inlet Position: Back Inlet


    Pressure Information

    Inlet Valve Recommended

    Maximum Pressure: 1000 kPa


    Size and Dimensions

    Width: 350 mm

    Height: 862 mm

    Pan Height: 440 mm

    Projection: 655 mm

    P Trap Setout: 185 mm

    S Trap Recommended Setout: 140 mm

    S Trap Setout: 185 mm

    Uni-Orbital Connector Setout Range: 60mm to 200mm (up to 50mm sideways adjustment)

    Weight of Cistern: 16 kg

    Weight of Pan: 35 kg



    Warranty - Domestic Use: 10 Years

    Warranty - Commercial Use: 12 Months

    Spare Parts and Labour: 12 Months

    Warranty Information: For full warranty terms and conditions please refer to the Caroma Warranty document



    Rating: 4 Star Rating

    Measure: 3.5 Average Ltrs Per Flush

    Measure: 4.5 Litres Per Full Flush

    Measure: 3 Litres Per Half Flush
